EUROPROBE 3.2 SYSTEM – THE ULTIMATE CONCEPT FOR RADIOGUIDED SURGERY

THE ULTIMATE CONCEPT FOR RADIOGUIDED SURGERY

With a single Readout Module and 9 gamma probe options, the EUROPROBE 3.2 is a unique system fulfilling all the needs of per-operative and percutaneous detection within 7 major clinical fields.

CLINICAL APPLICATIONS

BREAST CANCER

  • Sentinel node biopsy
  • In-clinic lesions detection
    (“ROLL”, “SNOLL”)

GYNAECOLOGY

  • Laparoscopic detection of sentinel node in cancer of the cervix and endometrium
  • Sentinel node detection of vulva cancer

PLASTIC SURGERY

  • Melanoma

HEAD & NECK

  • Oral cavity
  • Oropharynx (validation on process)

ENDOCRINOLOGY

  • Thyroid
  • Parathyroid

NUCLEAR MEDICINE

  • Percutaneous detection
  • Localisation of gamma labelled areas

UROLOGY

  • Penile cancer

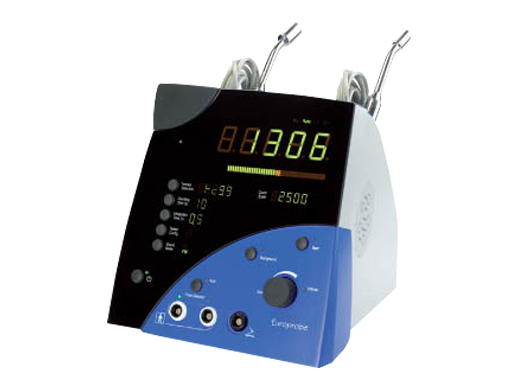

THE READOUT MODULE

MAIN FEATURES

  • Automatic setting (for Tc99)
  • Mains electric powered
  • Automatic probe identification
  • Direct reading
  • Large display of 5 digits
  • PC port
  • 2 sound modes BIP or FM
  • 9 Customized configurations storage
  • Foot Switch (optional)

TECHNICAL SPECIFICATIONS

  • Maximum count: 15000cps
  • Operating temperature range: +15° to +40°C
  • Height: 245mm
  • Width/Depth: 233/270mm
  • Weight: 2kg
  • Power consumption: Maximum 15W
  • Operating power: 115/220VAC F=50Hz
  • Conformity with CEI 60601-1-2
  • EEC: EC 0459 class 2 a
  • USA: FDA Registered No. 9032627
  • CANADA: Licenced No. 61985 CSA on process

THE PROBES

Type of probe* Reference Detector Diameter Length Energy Isotope Shape Reading Additional Collimator available
SMALL SOE 3211 CdTe 5x5x3mm Cadmium Telluride 11mm L: 175mm 20 – 300KeV Tc 99, I 125 ANGLED AXIAL YES
Type of probe* Reference Detector Diameter Length Energy Isotope Shape Reading Additional Collimator available
MEDIUM high sensitivity SOE 3211-14 CdTe Cadmium Telluride 14mm L: 197mm 100KeV – 1 Mev Tc 99, I 131, FDG ANGLED AXIAL YES
Type of probe* Reference Detector Diameter Length Energy Isotope Shape Reading Additional Collimator available
LARGE high sensitivity SOE 3216-7 CsI (Tl) Crystal 5x10mm coupled to a 25mm photodiode 16mm L: 184mm 100KeV – 1 Mev Tc 99, I 131, FDG ANGLED AXIAL YES
Type of probe* Reference Detector Diameter Length Energy Isotope Shape Reading Additional Collimator available
LAPAROSCOPIC SOE 3211-AF CdTe 5x5x3mm Cadmium Telluride 10mm L: 266.5mm 20 – 300KeV Tc 99 STRAIGHT AXIAL NO
Type of probe* Reference Detector Diameter Length Energy Isotope Shape Reading Additional Collimator available
LAPAROSCOPIC SOE 3211-AL CdTe 5x5x3mm Cadmium Telluride 10mm L: 266.5mm 20 – 300KeV Tc 99 STRAIGHT LATERAL NO

* All probes are waterproof and have integrated collimator (tungsten)

SETTING UP IN 3 STEPS

THE BLUETOOTH® PROBE

THE WIRELESS ALTERNATIVE FOR RADIOGUIDED SURGERY

USER INTERFACE

1. Connect the Europrobe 3.2 Display to the Power Supply

2. Switch on the Display, the Bluetooth® Logo will illuminate

3. Turn on the Bluetooth® Probe, by pressing the on/off switch on the handle. The right hand side LED will briefly illuminate orange then go off. At this time the left hand side LED will illuminate Blue indicating there is radio communication with the Display

4. The Blue LED, left hand side, will flash intermittently when data is being exchanged with the Display

5. If the Bluetooth® probe is not used for several minutes the probe will go into stand-by mode. To reactivate please go to 3 and start up the probe.

Parameters Specifications
Detector Detector Crystal:CsI 10mm long x 5mm diameter coupled to a 25mm2 silicon photodiode
Energy Range 100KeV to 1 MeV (Tc-99m, In-111, I-131, F18)
Probe Dimensions Probe Length 261mm Diameter 11mm
Collimation The collimator is integrated in the probe
Weight 200g
Protection IP IP64
Probe Battery Pile Li-SOCL2 1/2AA 3,6V SAFT LS 14250
Wireless connection Module Bluetooth® ID: ES9LMX9838
Decontamination By Immersion, ONLY AFTER THE BATTERY HAS BEEN REMOVED
