PET Protection Barriers

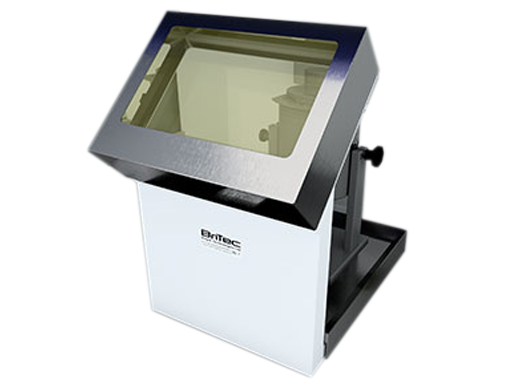

STANDARD PET BARRIER

Heavy duty barriers with 30mm lead shielding and FULL EQUIVALENT LEAD GLASS WINDOW. Mainly used in PET departments and Mobile Scanners. Working surfaces are of stainless steel and the base contains a removable stainless steel tray designed to contain spills and allow for easy decontamination.

Material Specifications

Lead glass: LE-DIN EN 61331-2 (PROTECTIVE GLASS STANDARD).

Lead: BSEN 12588.

Outer frame: powder coated white.

Inner surfaces: stainless steel.

Removable stainless steel tray.

Base: 350mmx435mm (WxD).

Overall height: 545mm.

Viewing area: 296mmx185mm.

Weight: 150kg.

Code	Description
5BT-LVB30	PET viewing barrier, 30mm lead shielding 30mm LE glass
5BT-LVBSST	Stainless Steel Tray
502LS-NSS	Non-standard sizes available

MOBILE PROTECTION BARRIER

This shield protects operators from radiation energy 511KeV while retaining maximum accessiblity to the patient due to its narrow width. The shield is mobile with locking castors. Lead shielding is 30mm. Lead glass is 30mm lead equivalent.

Material Specifications

Frame: box section.

Finish: Epoxy powder coated, white.

Lead glass: 30mm le-din en 61331-2 (protective glass standard).

125mm diameter locking castors

Weight: 125kg

Code	External size (mm)	Lead size (mm)	Glass size (mm)
9BT-MOBPETBAR	510x600x1480	500x400x30Pb	400x265x80 (30mm LE)
CUSTOM SIZES AVAILABLE ON REQUEST
