Syringe Shields

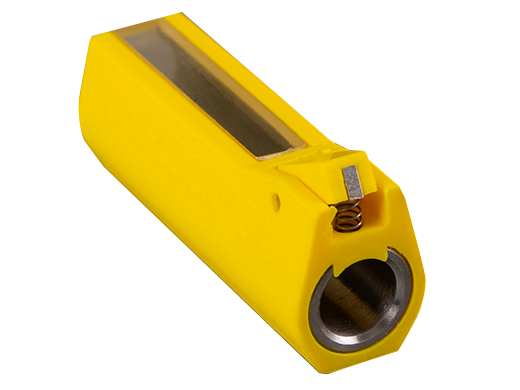

UNILOCK® 5 TUNGSTEN SYRINGE SHIELDS

THE UNILOCK® 5 SYRINGE SHIELD REPLACES THE UNILOCK® I SYRINGE SHIELD. (For higher activity work such as kit preparation we recommend using Unilock® 4.)

This design development is in response to customers requesting syringe shields that offer greater glass protection and an anti-roll design. Radiopharmacist's are also requesting colour coded syringe shields.

Although yellow is the standard colour, red and blue available as an optional extra.

Other colours are available for customers ordering 5 or more syringe shields in any one size.

Please refer to the table below for details and product codes you will require when ordering.


Click for a printable PDF information sheet of the Unilock® 5

Code Average Weight (g) Length (mm) Int Ø Tungsten Barrel (mm) Tungsten Thickness (mm)
1BT-U501A 120 74 8.8 1.8
1BT-U501B  140 77 8.8 1.8
1BT-U501L 165 75 11.5 2.25
1BT-U502A 140 53 11.5 2.25
1BT-U502B 145 59 11.5 2.25
1BT-U503A 150 65 11.5 2.25
1BT-U503B 160 68 11.5 2.25
1BT-U505A 190 60 15.4 2.3
1BT-U505B 195 65 15.4 2.3
1BT-U505C 200  68 15.4 2.3
1BT-U510A 250 75 18.2 2.15
1BT-U510B 260 85 18.2 2.15
1BT-U520 285 95  23 2

CUSTOM SIZES ARE AVAILABLE ON REQUEST

Note: If the make of syringe is not specified on an order, the longest length of that particular size will be supplied for radiation safety reasons. Customers with existing Unilock® 1's can have them converted to the Unilock® 5's

When ordering blue or red shields please add the following to the end of the above codes:

'B' - For blue 'R' - For red

Unilock® is a registered trademark of Bio-Nuclear Services Ltd.

UNILOCK® 4 TUNGSTEN SYRINGE SHIELDS

NEW Tungsten Syringe Shield with the same popular locking mechanism as the Unilock® I but with the whole of the tungsten barrel being made from tungsten, this gives increased shielding. There is also the added advantage of a wider lead glass window for increased viewing of the syringe graduations. The Unilock 4 has a flat base to prevent rolling whilst in use.

Specifications

Tungsten barrel: Minimum 2mm wall thickness Lead glass window: 6-8mm thick, 2mm Pb equivalent The shield is available to suit all size and make of syringes (see dimensions below)

Code Description Length (mm) Ext (mm) Int Ø (mm)
1BT-U401A To fit 1ml syringes 74 18x23 9
1BT-U401B To fit 1ml syringes 77 18x23 9
1BT-U401L To fit 1ml Luerlock syringe 75 18x23 13
1BT-U402A To fit 2ml syringes 53 18x23.50 13
1BT-U402B To fit 2ml syringes 59 18x23.50 13
1BT-U403A To fit 3ml syringes 65 18x23.50 13
1BT-U403B To fit 3ml syringes 68 18x23.50 13
1BT-U405A To fit 5ml syringes 60 21x27 16
1BT-U405B To fit 5ml syringes 65 21x27 16
1BT-U410A To fit 10ml syringes 75 22x30 18
1BT-U410B To fit 10ml syringes 85 22x30 18

Unilock® is a registered trademark of Bio-Nuclear Services Ltd.

TUNGSTEN SCREW-LOCK SYRINGE SHIELDS

Screw lock design using the same tungsten barrel as the Uni-Lock® 4 tungsten syringe shield.

Code Size Length (mm) Ext (mm) Int Ø (mm)
1BT-SL01A To fit 1ml syringes 74 18x23 9
1BT-SL01B To fit 1ml syringes 77 18x23 9
1BT-SL01L To fit 1ml Luerlock syringe 75 18x23 13
1BT-SL02A To fit 2ml syringes 53 18x23.50 13
1BT-SL02B To fit 2ml syringes 59 18x23.50 13
1BT-SL03A To fit 3ml syringes 65 18x23.50 13
1BT-SL03B To fit 3ml syringes 68 18x23.50 13
1BT-SL05A To fit 5ml syringes 60 21x27 16
1BT-SL05B To fit 5ml syringes 65 21x27 16
1BT-SL10A To fit 10ml syringes 75 22x30 18
1BT-SL10B To fit 10ml syringes 85 22x30 18

*Please specify length when ordering

UNILOCK® LEAD GLASS SYRINGE SHIELDS

New high density (6.2) lead glass barrel fitted with the UNI-LOCK® design locking mechanism.

  • The lead glass barrel gives a clear view of the syringe graduations over the entire length
  • The barrel is bevelled for manoeuvrability during patient injection
  • Available in 1ml, 2/3ml, 5ml and 10ml sizes
  • Complete 360 degree visibility
  • Provides the best combination of shielding with ease of use.
Code Size
1007-670 To fit 1ml syringes
1007-675 To fit 3ml/3cc syringes
1007-680 To fit 5ml syringes
1007-685 To fit 10ml syringes
Unilock® is a registered trademark of Bio-Nuclear Services Ltd.

UNILOCK® BETA SYRINGE SHIELD

New Unilock® Beta Syringe Shields use the same locking mechanism used in our Unilock® range.

The plastic casing stops the syinge shield from rolling around with our anti-roll feature and helps protect the perspex window.

Specifications

Aluminium Barrel Wall thickness : 5mm wall thickness
Perspex Window thickness: 10mm.

Code Length (mm) Int Ø (mm)
1BT-UB01A 72 9
1BT-UB01B 77 9
1BT-UB01L 75 11.5
1BT-UB02A 53 11.5
1BT-UB02B 59 11.5
1BT-UB03A 65 11.5
1BT-UB03B 68 11.5
1BT-UB05A 60 15.4
1BT-UB05B 65 15.4
1BT-UB05C 68 15.4
1BT-UB10A 75 18
1BT-UB10B 85 18
1BT-UB20 95 23

CUSTOM SIZES ARE AVAILABLE ON REQUEST

Unilock® is a registered trademark of Bio-Nuclear Services Ltd.

PLASTIC SHIELDS FOR BETA EMITTERS

Light weight acrylate shield with 360° unobstructed view of syringe and contents. Shield wall 10mm thick for maximum beta absorption. Available in 1ml, 2ml, 3ml, 5ml, 10ml, 20ml & 50ml sizes.

Code Description Length (mm) Ext (mm) Int ∅ (mm)
1BT-BS01 1ml Beta syringe shield 77 ∅28.80 ∅8.80
1BT-BS01L 1ml Beta syringe shield 79 31.50 ∅11.50
1BT-BS02 2ml Beta syringe shield 61 ∅31.00 ∅11.00
1BT-BS03 3ml Beta syringe shield 70 ∅31.50 ∅11.50
1BT-BS05 5ml Beta syringe shield 67 ∅37.00 ∅15.00
1BT-BS10 10ml Beta syringe shield 87 ∅39.00 ∅19.00
1BT-BS20 20ml Beta syringe shield To customer specifications
1BT-BS50 50ml Beta syringe shield To customer specifications

Pro-Tec® BETA SHIELD

Designed for administering Yttrium-90, Strontium-89, Phosphorous-32 and other beta emitting radiopharmaceuticals. The lightweight shield is manufactured in acrylic with a thin layer of lead encapsulated in the acrylic. This construction attenuates both beta emissions and Bremstrahlung. The barrel is bevelled for manoeuvrability. Size is 80mm long by 38mm o.d. and 19mm i.d. Weight is 118g. Screw locking mechanism.

Code Size
1007-956 1ml Pro-Tec® Beta syringe shield
1007-957 10ml Pro-Tec® Beta syringe shield

511KeV PET TUNGSTEN SYRINGE SHIELDS NEW & IMPROVED

* Custom sizes available

511KeV tungsten syringe shield for use with PET isotopes. In our new design, we have integrated an anti-roll feature. It uses a screwlock mechanism to hold the syringe in place when in use.


Material Specifications
Barrel: Tungsten 90% plus Ni & Cu balanced
Window: lead glass 11-13mm (4mm LE)
Screw: M4x16 socket cap

Code Description Wall thickness Weight (g) Length (mm) ID (mm) OD (mm)
1BT-511S01 FOR 1ml 7.5mm 500 72 8.5 24
1BT-511S01L FOR 1ml Luer Lok 7.5mm 500 75 12 26
1BT-511S02 FOR 2ml  7.5mm 400 53 12 26
1BT-511S03 FOR 3ml 7.5mm  400  65 12 26
1BT-511S05 FOR 5ml 7.5mm 600 60 16 31
1BT-511S10 FOR 10ml 7.5mm 700 75 18 33

PET-MRI SYRINGE SHIELDS NEW & IMPROVED

* Custom sizes available

We are pleased to accounce that we are now manufacturing PET-MRI compatible syringe shields. These have been tested and found to be suitable for MRI scanner magnets up to 3 Tesla.


Material Specifications
Barrel: Tungsten 100%
Window: lead glass 11-13mm (4mm LE)
Screw: Non magnetic

Code Description Wall thickness Weight (g) Length (mm) ID (mm) OD (mm)
1BT-PETMRI01 FOR 1ml 7.5mm 500 72 8.5 24
1BT-PETMRI01L FOR 1ml Luer Lok 7.5mm 500 75 12 26
1BT-PETMRI02 FOR 2ml 7.5mm 400 53 12 26
1BT-PETMRI03 FOR 3ml 7.5mm 400 65 12 26
1BT-PETMRI05 FOR 5ml 7.5mm 600 60 16 31
1BT-PETMRI10 FOR 10ml 7.5mm 700 75 18 33
